Managing water is an important aspect of sand and gravelprocessing operations in mining. A variety of pumps are required for the diverse range of applications on a quarry site and using the correct one for each application is vital for overall cost savings.
Aggregates such as sand, gravel and crushed stone are the most commonly mined materials worldwide for a reason. Mixed with substances such as bitumen and cement, they provide the strength, resistance and stability needed to erect buildings, pave roads and assemble bridges. Due to their central role in supporting infrastructure development, quarry plants aim to deliver high efficiency and productivity levels and using the right pumps is crucial to be able to do that.
Quarry operations Pumps are widely used in three main quarry operations: supplying process water, pumping slurry and mud, and site dewatering. One application involves using clean water to spray and rinse off unwanted materials in the washdown process. As a result, this water becomes mixed with fine particles, rock dust, or even chemicals that are a result of the cleaning process and turns into a slurry that may need to be transferred to another location. Another necessary process is the dewatering of rainwater, groundwater or process overflow that accumulates on the site.
Jeff Davis, western regional sales manager at Tsurumi America, explained how important it is to use the correct pump for each application and how it could significantly improve a quarry’s bottom line. “For example, for site dewatering, there are several factors that will determine the proper pump choice, such as vertical and horizontal discharge head and flow requirements.
If the water used in the washdown process comes from a distant source, or deep down in a pit or reservoir, you will need a high-head, high-pressure pump,” said Davis. “However, if you need to move light to medium slurry, a pump with an agitator would be a better choice. A high chrome impeller and agitator will withstand the abrasive nature of the slurry while suspending the settled solids for better transfer.”
The type of power supply available onsite is another factor to take into consideration when determining which pump should be used in a quarry application. There is a wide range of singlephase and three-phase pumps on the market to fit different needs. Typically, higher-capacity and higher horsepower pumps require three-phase power while some applications may only require smaller, single-phase pumps.

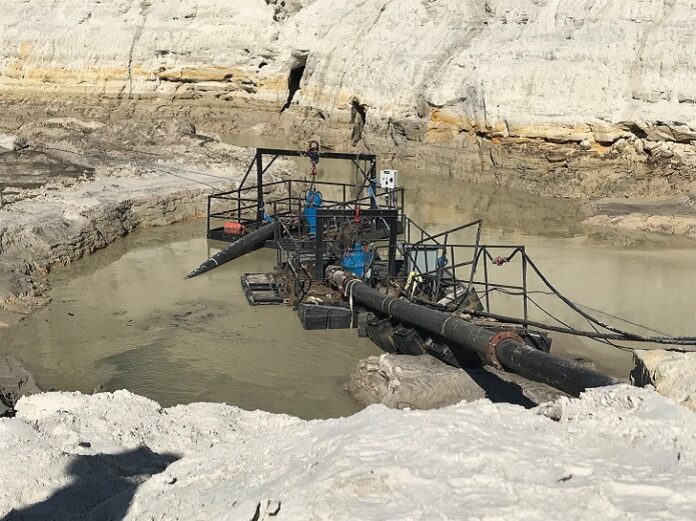

High-volume dewatering pumps are sometimes necessary to remove rain or floodwater from a site. Tsurumi’s GSZ Series (between 30 hp and 200 hp and over 5,000 gallons per minute [gpm]) and the KRS Series (between 3 hp and 50 hp and up to 4,500 gpm) are designed with powerful 4 and 6-pole motors running at slower impeller tip speed, which extends their parts’ wear life by up to three times the average length.
Both series have heavy duty, cast iron construction materials with optional high chrome wear parts, which prevent premature wear and failure from the abrasive materials found in mining, aggregate and construction applications. If heavy abrasives are present, many of these models can be easily converted to agitator pumps for quarry and gravel pit dewatering.
Supplying water Tsurumi’s LH and LHW series handle high flows with extremely high-head capabilities, making these pumps well-designed for long-distance horizontal and/or vertical water transfer in aggregate plants. The LHW Series can reach a maximum head of 750 ft. Both lines have replaceable high chrome, semi-open impeller and adjustable wear rings, which provide increased wear resistance when handling abrasive liquids. Horsepower ranges between 4 hp and 150 hp on the LH Series. GSZ Series’ horsepower ranges from 30 hp to 200 hp. The GSZ Series can reach over 5,000 gpm and 230 ft of head.
Designed for pumping water containing sand, solids and debris with minimal wear and clogging, Tsurumi’s HS and NK Series handle heavy duties on the site. These single-phase pumps offer the option of operating with agitators, which makes them ideal for pumping the muddy liquid accumulated on the ground that results from the aggregate washdown process.
Sludge and slurry For sludge and slurry pumping, Tsurumi’s powerful three-phase models have an abrasion-resistant impeller and agitator. The agitator creates a downward current, helping the pump to suspend and transfer solids more effectively. The cast iron pump body of KTD and KRS models ensures that durability is greatly enhanced over standard aluminium-bodied pumps.
The top discharge design allows installation in tight spaces and provides motor heat dissipation as the water passes over the motor housing. KTV models are also designed with space limitations in mind, featuring the same top-discharge, while offering greater portability due to die-cast aluminium housings and specially treated synthetic rubber parts to deliver a significant weight reduction.
GPN and GSD heavy-duty agitator pumps offer exceptional durability, including high chrome cast impellers and agitators for abrasion resistance and slower impeller tip speeds with 4-pole and 6-pole motors.
